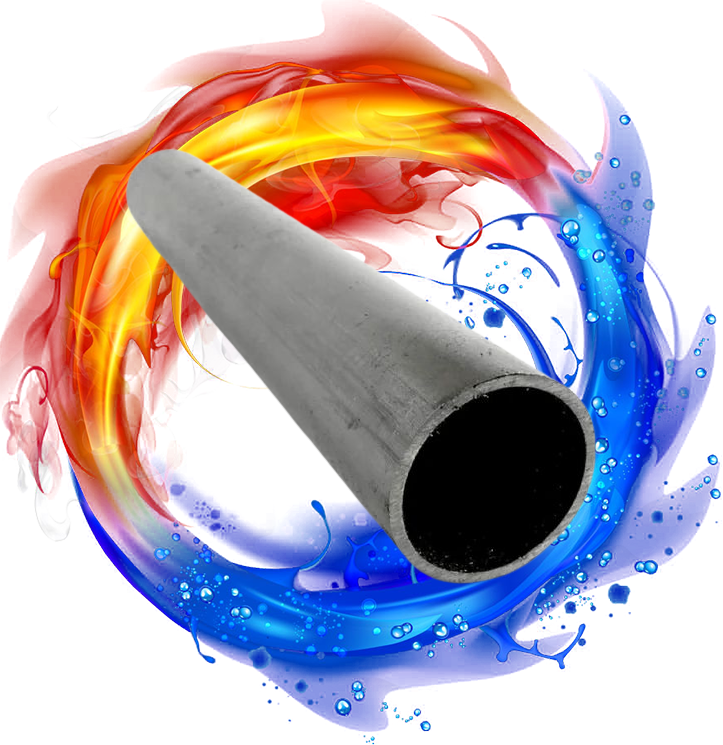

Mild Steel ERW Pipes

Mild Steel ERW Pipes are made of low carbon structural steel, which is one of the most common materials used in manufacturing and construction applications. The pipes are high-strength, corrosion and abrasion resistant and can be easily shaped into any desired form. Mild Steel ERW Pipes offer excellent durability and strength while being cost-effective.

The main advantage of Mild Steel ERW Pipes is that they have superior tensile strength compared to other types of pipes. They also have exceptional resistance to impact and fatigue loads, making them ideal for many industrial applications such as piping for oil, gas, water systems, heat exchangers, bridges, and motor vehicles.

Mild Steel Hot Rolled ERW Pipe, Mild Steel ERW Pipe Suppliers, Mild Steel ERW Pipe HS Code, Mild Steel ERW Pipe Price, Mild Steel ERW Pipe Stock, MS ERW Pipes, Mild Steel ERW Pipe Prices, Mild Steel ERW Pipe, Mild Steel Cold Rolled ERW Pipes, Mild Steel ERW Pipe Manufacturer in India.

Mild Steel ERW Pipes are available in a wide range of sizes and thicknesses, making them ideal for use in many different projects. They can be used for both indoor and outdoor applications, where their robustness and strength make them suitable for any type of construction job.

These pipes are also versatile enough to be used in a variety of other applications such as water well drilling, automotive frames, machinery parts and components, agricultural machinery parts, and many others. With their excellent durability, mild steel ERW Pipes provide reliable performance over the long term with minimal maintenance required.

At Inox Pumps we stock a wide variety of Mild Steel ERW Pipes to meet your needs. We supply pipes in different sizes ranging from ½” to 6”, so you can find the perfect fit for your project. Our Mild Steel ERW Pipes also come in different lengths and thicknesses to suit your specific requirements. All our products are made from quality materials and are designed to provide the best performance in any application.

ASTM A312 Mild Steel Welded Pipe manufacturer, MS ERW Pipe, MS ERW Pipe Weight Chart, View ANSI B36.19 Welded Wrought Steel Pipe, Check Mild Steel ERW Pipe Pressure Rating, Mild Steel ERW Pipe, Mild Steel ERW Pipe Supplier in Mumbai, India.

MS ERW Pipe Suppliers, Mild Steel ERW Pipe Schedule Size, UNS S30400 ERW Square Pipes, Steel ERW Rectangular Pipes Suppliers, MS ERW Pipe Price, Mild Steel ERW Pipes Stockist in India.

Specification of Mild Steel ERW Pipe

Specifications

ASTM A312 / ASTM SA312

Range

1/8” NB to 36” NB, 1/4” OD to 36” OD

Outer Diameter

6.35 mm O.D to 114.3 mm O.D

Thickness

0.8 mm to 12.7 mm

Length

up to 26 Meters

End

Plain End, Beveled End

Types Of Mild Steel ERW Pipes

MS Electric Resistance Welded

MS Electric Resistance Welded

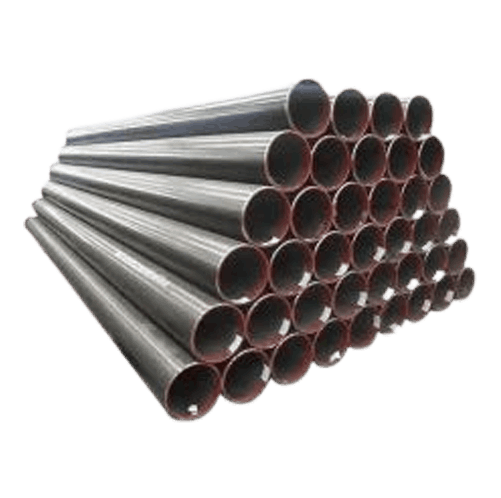

Mild Steel ERW Round Pipe

Mild Steel ERW Round Pipe

Standard Sizes Of MS ERW Pipes

Type Sizes in milimeter Sizes in inches Tolerance
Peeled and Polished 40.00 - 150.00 1.50 - 6.00 h11, h11-DIN 1013
Cold Drawn and Polish 3.00 to 75.00 1/8 to3.00 h8 to h11
Cold Drawn and Ground 10.00 to 75.00 5/6 to 2.50 h8 to h11
Peeled nd Ground 20.00 - 50.00 3/4 - 2.00 h9 to h11

Equivalent Grades Of Mild Steel ERW Pipes

IS 1239 yst 355 IS 1239 yst 355 Tata Structura 355 DIN: 2440, 2441, BS: 1387, S: 3589, 1239 ISO: 65

Weight Chart Of Mild Steel ERW Pipes

Size NPS Pipe O.D. Wall Thickness Pipe I.D. Weight per Foot Standard to XXHY Schedule
Pipe #
Section Modulus Gallon Capacity Per Linear Foot
1/2 0.84 0.109 0.622 0.85 STD 40 .0407 .0158
    0.147 0.546 1.09 XHY 80 .0478 .0122
    0.188 0.464 1.31   160 .0528 .0088
    0.294 0.252 1.72 XXHY   .0577 .0026
3/4 1.05 0.113 0.824 1.13 STD 40 .0705 .0277
    0.154 0.742 1.48 XHY 80 .0853 .0225
    0.219 0.612 1.95   160 .1006 .0153
    0.308 0.434 2.44 XXHY   .1103 .0077
1 1.315 0.133 1.049 1.68 STD 40 .1328 .0449
    0.179 0.957 2.17 XHY 80 .1606 .0374
    0.250 0.815 2.85   160 .1904 .0271
    0.358 0.599 3.66 XXHY   .2136 .0146
1 1/4 1.66 0.140 1.380 2.27 STD 40 .2346 .0777
    0.191 1.278 3.00 XHY 80 .2913 .0666
    0.250 1.160 3.77   160 .3421 .0549
    0.382 0.896 5.22     .4110 .0328
1 1/2 1.90 0.145 1.610 2.72 STD 40 .3262 .1058
    0.200 1.500 3.63 XHY 80 .4118 .0918
    0.281 1.338 4.86   160 .5079 .0730
    0.400 1.100 6.41     .5977 .0494
2 2.375 0.109 2.157 2.64   10 .4205 .1898
    0.154 2.067 3.66 STD 40 .5606 .1743
    0.218 1.939 5.03 XHY 80 .7309 .1534
    0.250 1.875 5.68     .8045 .1434
    0.281 1.813 6.29     .8666 .1344
    0.344 1.687 7.47   160 .9806 .1161
    0.436 1.503 9.04 XXHY   1.1043 .0922
2 1/2 2.875 0.120 2.635 3.53   10 .6870 .2833
    0.203 2.469 5.80 STD. 40 1.0640 .2487
    0.216 2.443 6.14     1.1169 .2435
    0.250 2.375 7.02     1.2468 .2301
    0.276 2.323 7.67 XHY 80 1.3386 .2202
    0.375 2.125 10.02   160 1.6371 .1842
    0.552 1.771 13.71 XXXHY   1.9971 .1280
3 3.50 0.120 3.260 4.34     1.0411 .4336
    0.156 3.188 5.58     1.3122 .4147
    0.172 3.156 6.12     1.4265 .4064
    0.188 3.124 6.66     1.5342 .3984
    0.216 3.068 7.58 STD. 40 1.7241 .3840
    0.250 3.000 8.69     1.9372 .3672
    0.281 2.938 9.67     2.1207 .3521
    0.300 2.900 10.26 XHY 80 2.2253 .3431
    0.438 2.624 14.34   160 2.8774 .2811
    0.600 2.300 18.6 XXHY   3.4243 .2158
3 1/2 4.0 0.120 3.760 4.98   10 1.3776 .5768
    0.226 3.548 9.12 STD. 140 2.3939 .5136
    0.250 3.500 10.02     2.6001 .4998
    0.281 3.438 11.17     2.8562 .4821
    0.318 3.364 12.52 XHY 80 3.1400 .4617
    0.636 2..728 22.87 XXHY   4.8795 .3085
4 4.5 0.120 4.260 5.62   10 1.7612 .7404
    0.156 4.188 7.24     2.2354 .7156
    0.188 4.124 8.67     2.6296 .6942
    0.203 4.094 9.32     2.8173 .6838
    0.219 4.062 10.02     3.0184 .6725
    0.237 4.026 10.80 STD. 40 3.2145 .6613
    0.250 4.000 11.36     3.3611 .6528
    0.281 3.938 12.67   60 3.7021 .6326
    0.312 3.876 13.97     4.0273 .6126
    0.337 3.826 15.00 XHY 80 4.2713 .5972
    0.438 3.624 19.02   120 5.1790 .5361
    0.531 3.438 22.53   160 5.8997 .4822
    0.674 3.152 27.57 XXHY   6.7927 .4054
5 5.563 0.188 5.187 10.80     4.1161 1.0979
    0.219 5.125 12.51     4.7279 1.0716
    0.258 5.047 14.63 STD. 40 5.4500 1.0391
    0.281 5.001 15.87     5.8644 1.0204
    0.312 4.939 17.51     6.4074 .99647
    0.344 4.875 19.19     6.9358 .9696
    0.375 4.813 20.80 XHY 80 7.4300 .9449
    0.500 4.563 27.06   120 9.2534 .8495
    0.625 4.313 32.99   160 10.7976 .7590
    0.750 4.063 38.59 XXHY   12.0954 .6734
6 6.625 0.109 6.407 7.59   5 3.5769 1.6748
    0.134 6.357 9.30   10 4.3475 1.6488
    0.156 6.313 10.79     5.0107 1.6260
    0.188 6.249 12.94     5.9351 1.5937
    0.203 6.219 13.94     6.3804 1.5780
    0.219 6.187 15.00     6.8261 1.5620
    0.250 6.125 17.04     7.6905 1.5306
    0.280 6.065 18.99 STD. 40 8.4958 1.5008
    0.312 6.001 21.06     9.3416 1.4688
    0.344 5.937 23.10     10.111 1.4391
    0.375 5.875 25.05     10.893 1.4082
    0.432 5.761 28.60 XHY 80 12.224 1.3541
    0.500 5.625 32.74     13.711 1.2909
    0.562 5.501 36.43   120 14.9806 1.2346
    0.625 5.375 40.09     16.1821 1.1787
    0.719 5.187 45.39   160 17.8243 1.0977
    0.864 4.897 53.21 XXHY   20.025 .9784
    1.000 4.625 60.13     21.7719 .8727
    1.125 4.375 66.14     23.1237 .7809
