Stainless Steel ERW Pipes

Stainless Steel ERW Pipes are an indispensable part of the mechanical and structural industries due to their strength, durability, corrosion resistance, and easy maintenance. These pipes are made using a process called Electric Resistance Welding (ERW), which uses electric current for welding operations. The result is a superior-quality product that provides superior strength in both static and dynamic applications.

These pipes can be used in a variety of different applications such as water supply lines, drain systems, pressure piping systems, fire protection systems, industrial piping systems, and many other projects.

Stainless Steel ERW Pipe, Stainless Steel ERW Pipe Stock, Stainless Steel ERW Pipe Prices, Stainless Steel Cold Rolled ERW Pipes, Stainless Steel ERW Pipe HS Code, Stainless Steel ERW Pipe Suppliers, Stainless Steel ERW Pipe Price, Stainless Steel Hot Rolled ERW Pipe, SS ERW Pipes, Stainless Steel ERW Pipe Manufacturer in India.

They offer excellent tensile strength along with superior abrasion resistance and corrosion resistance against chemicals like sulfuric acid and hydrochloric acid. In addition to this, these pipes provide good weldability and formability, making them suitable for use in a range of different applications.

Our Stainless Steel ERW Pipes are available in a variety of lengths and diameters, allowing you to get the perfect fit for your specific needs. With our wide selection of sizes, finishes, and grades available, we are confident that you will find the perfect solution for your project.

SS 304 ERW Pipe, ASTM A312 316 Stainless Steel Welded Pipe manufacturer, Stainless Steel 304 ERW Pipe, View ANSI B36.19 Welded Wrought Steel Pipe, SS ERW Pipe Weight Chart, Check 316 Stainless Steel ERW Pipe Pressure Rating, Stainless Steel ERW Pipe Supplier in Mumbai, India.

304L SS ERW Pipe Price, SS 316L ERW Pipe Suppliers, Stainless Steel ERW Pipe Schedule Size, UNS S30400 ERW Square Pipes, Steel 304 ERW Rectangular Pipes Suppliers, Stainless Steel ERW Pipes Stockist in India.

Specification of Stainless Steel ERW Pipe

Specifications

ASTM A312 / ASTM SA312

Range

1/8” NB to 36” NB, 1/4” OD to 36” OD

Outer Diameter

6.35 mm O.D to 114.3 mm O.D

Thickness

0.8 mm to 12.7 mm

Length

up to 26 Meters

End

Plain End, Beveled End

Types Of Stainless Steel ERW Pipes

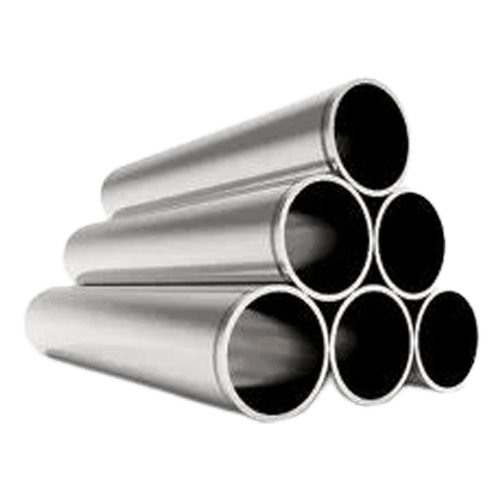

SS Electric Resistance Welded

SS Electric Resistance Welded

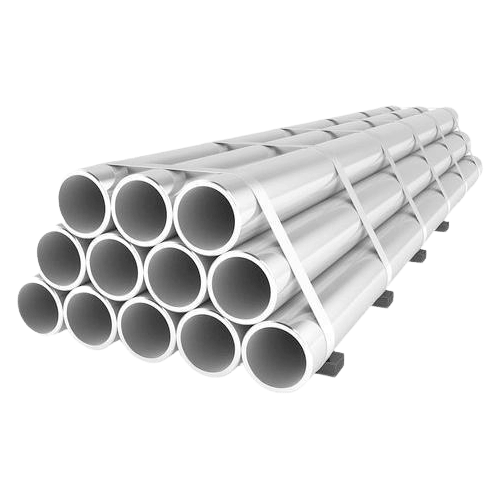

Stainless Steel ERW Round Pipe

Stainless Steel ERW Round Pipe

Standard Sizes Of SS ERW Pipes

Type Sizes in milimeter Sizes in inches Tolerance
Peeled and Polished 40.00 - 150.00 1.50 - 6.00 h11, h11-DIN 1013
Cold Drawn and Polish 3.00 to 75.00 1/8 to3.00 h8 to h11
Cold Drawn and Ground 10.00 to 75.00 5/6 to 2.50 h8 to h11
Peeled nd Ground 20.00 - 50.00 3/4 - 2.00 h9 to h11

Equivalent Grades Of Stainless Steel ERW Pipes

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 304H 1.4301 S30409
SS 310 1.4841 S31000 SUS 310 310S24 20Ch25N20S2 X15CrNi25-20
SS 310S 1.4845 S31008 SUS 310S 310S16 20Ch23N18 X8CrNi25-21
SS 310H S31009
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H 1.4401 S31609
SS 316Ti 1.4571 S31635 SUS 316Ti 320S31 08Ch17N13M2T Z6CNDT17‐123 X6CrNiMoTi17-12-2
SS 317 1.4449 S31700 SUS 317
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4
SS 321 1.4541 S32100 SUS 321 X6CrNiTi18-10
SS 321H 1.4878 S32109 SUS 321H X12CrNiTi18-9
SS 347 1.4550 S34700 SUS 347 08Ch18N12B X6CrNiNb18-10
SS 347H 1.4961 S34709 SUS 347H X6CrNiNb18-12
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5

Weight Chart Of Stainless Steel ERW Pipes

NPS Outside Diameter Wall Thickness Weight Weight
in mm in mm Sched kg/Mtr Lb/ft
1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
0.147 3.734 80 STD 1.621 1.088
3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
0.154 3.912 80 STD 2.195 1.474
1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
0.179 4.547 80 STD 3.325 2.172
1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
0.191 4.851 80 STD 4.464 2.997
1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
0.200 5.080 80 STD 5.409 3.361
2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
0.218 5.537 80 STD 7.480 5.022
2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
0.276 7.010 80 STD 11.411 7.661
3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
0.300 7.620 80 STD 15.272 10.253
4″ 4.500 114 0.237 6.020 16.073 10.790
0.337 8.560 22.318 14.983
6″ 6.625 168 0.188 4.775 19.252 12.924
0.203 5.516 20.739 13.923
0.219 5.563 22.318 14.983
0.250 6.350 25.354 17.021
0.280 7.112 40 STD 58.263 18.974
0.312 7.925 31.334 21.036
0.375 9.525 37.285 25.031
0.432 10.973 80 XHY 42.561 28.573
0.500 12.700 48.719 32.708
8″ 8.625 219 0.188 4.775 25.233 16.940
0.203 5.156 27.198 18.259
0.219 5.563 29.286 19.661
0.250 6.350 20 33.308 22.361
0.277 7.036 30 36.786 24.696
0.322 8.179 40 42.352 28.554
0.375 9.525 49.216 33.041
0.406 10.312 60 53.085 35.638
0.500 12.700 80 XHY 64.627 43.388
10″ 10.750 273 0.188 4.775 31.588 21.207
0.219 5.563 36.689 24.631
0.250 6.350 20 41.759 28.035
0.307 7.798 30 51.002 34.240
0.344 8.738 56.946 38.231
0.365 9.271 40 STD 63.301 40.483
0.438 11.125 71.852 48.238
0.500 12.700 60 XHY 81.530 54.735
0.594 15.088 80 95.969 64.429
12″ 12.750 324 0.188 4.775 37.570 25.222
0.219 5.563 43.657 29.309
0.250 6.350 49.713 33.375
0.281 7.137 55.739 37.420
0.312 7.925 61.735 41.445
0.375 9.525 73.824 49.562
0.406 10.312 79.727 53.525
0.500 12.700 97.438 65.415
0.562 14.275 108.966 73.154
14″ 14.000 356 0.188 4.775 41.308 27.732
0.219 5.563 48.012 32.233
0.250 6.350 20 54.685 36.713
0.281 7.137 61.327 41.172
0.312 7.925 67.939 45.611
0.375 9.525 STD 81.281 54.568
0.438 11.125 40 94.498 63.441
0.500 12.700 XHY 107.381 72.090
0.625 15.875 132.983 89.278
16” 16.000 406 0.188 4.775 47.290 21.748
0.219 5.563 54.980 36.910
0.250 6.350 10 62.639 42.053
0.281 7.137 70.268 47.174
0.312 7.925 20 77.866 52.275
0.344 8.738 85.677 57.519
0.375 9.525

30

STD

93.213 62.578
0.438 11.125 108.433 72.797
0.500 12.700

40

XHY

123.289 82.770
18″ 18.000 457 0.219 5.563 61.948 41.588
0.250 6.350 70.593 47.393
0.281 7.137 79.208 53.176
0.312 7.925 20 87.792 58.939
0.375 9.525 STD 105.144 70.588
0.438 11.125 30 122.369 82.152
0.500 12.700 XHY 139.198 93.450
0.562 14.275 40 155.904 104.666
0.625 15.875 172.754 115.978
20″ 20.000 508 0.250 6.350 78.547 52.733
0.282 7.163 88.458 59.386
0.312 7.925 97.719 65.604
0.375 9.525 20 STD 117.075 78.598
0.438 11.125 136.305 91.508
0.500 12.700 30 XHY 155.106 104.130
0.594 15.088 40 183.378 123.110
0.625 15.875 192.640 129.328
0.688 17.475 211.368 141.901
24″ 24.000 610 0.250 6.350 94.456 63.413
0.281 7.137 106.029 71.183
0.312 7.925 117.573 18.932
0.375 9.525 20 STD 140.938 64.618
0.438 11.125 164.176 110.219
0.500 12.700 XHY 186.923 125.490
0.625 15.875 232.410 156.028
0.688 17.475 40 255.148 171.293
0.750 19.050 277.401 186.233
30″ 30.000 762 0.250 6.350 118.318 79.433
0.281 7.137 132.851 89.189
0.312 7.925 10 147.353 98.925
0.375 9.525 STD 176.731 118.648
0.438 11.125 205.983 138.286
0.500 12.700 20 XHY 234.647 157.530
0.625 15.875 30 292.066 196.078
0.688 17.475 320.817 215.380
0.750 19.050 348.988 234.293
36″ 36.000 914 0.250 6.350 142.180 95.453
0.281 7.137 159.672 107.196
0.312 7.925 10 177.133 118.918
0.375 9.525 STD 215.525 142.678
0.438 11.125 247.790 166.353
0.500 12.700 20 XHY 282.372 198.570
0.625 15.875 351.723 236.128

0.688

17.475 386.487 259.467

0.750

19.050 420.576 282.353
42″ 42.000 1067 0.312 7.925 206.914 138.911
0.375 9.525 STD 248.319 166.708
0.500 12.700 XHY 33.097 221.610
0.750 19.050 492.163 330.413
48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
0.438 11.125 331.404 222.487
0.500 12.700 XHY 377.822 253.650
0.750 19.050 563.750 378.473
0.875 22.225 655.969 440.383
